3D / ARCHITECTURAL STUDY

Barcelona Facade Study.

BlenderAcademic ProjectFinal Grade · 10/10

An academic Blender recreation of a real Barcelona facade, extended beyond the frontal brief around the chamfered corner.

Rendered facade section showing the chamfered corner and adjoining sides.

Explore the model

02 / Blender

The references

Photographs establish the facade’s proportions, rhythm, and change of direction at the corner.

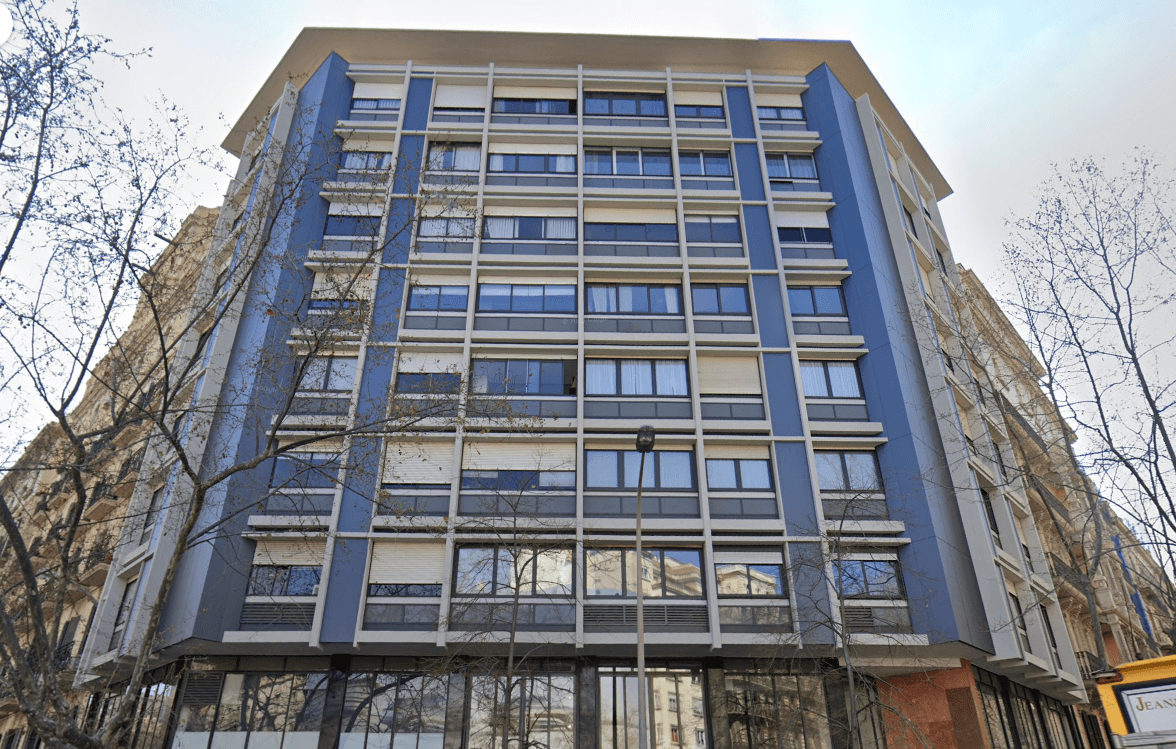

Photographic reference of the real facade on Rambla de Catalunya. — Front photographic reference

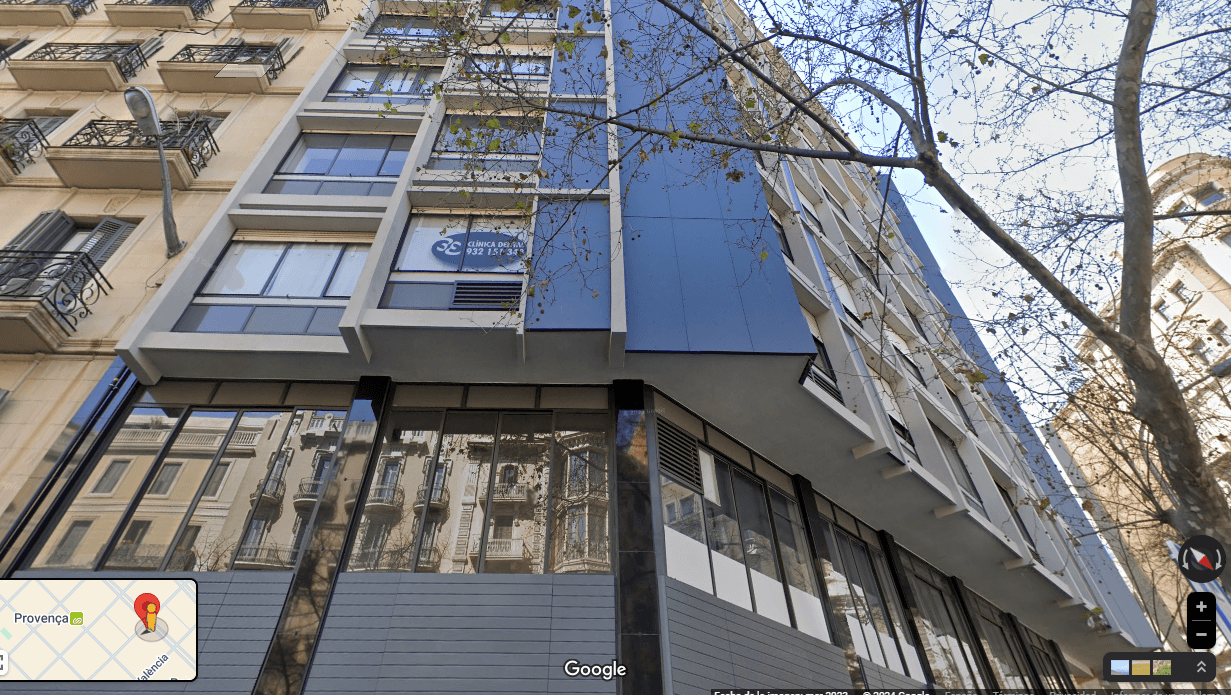

Photographic reference showing the building’s chamfered corner. — Corner photographic reference

03 / Blender

Beyond the brief

01 / Original assignment

Original assignment

Recreate primarily the frontal facade from photographic reference.

02 / Why I Extended It

Why I Extended It

The chamfered corner was the most distinctive part of the building, so I chose to carry the study beyond the frontal facade and model the corner as well.

04 / Blender

Materials

The supplied PBR maps separate surface color, normal detail, roughness, and metallic response.

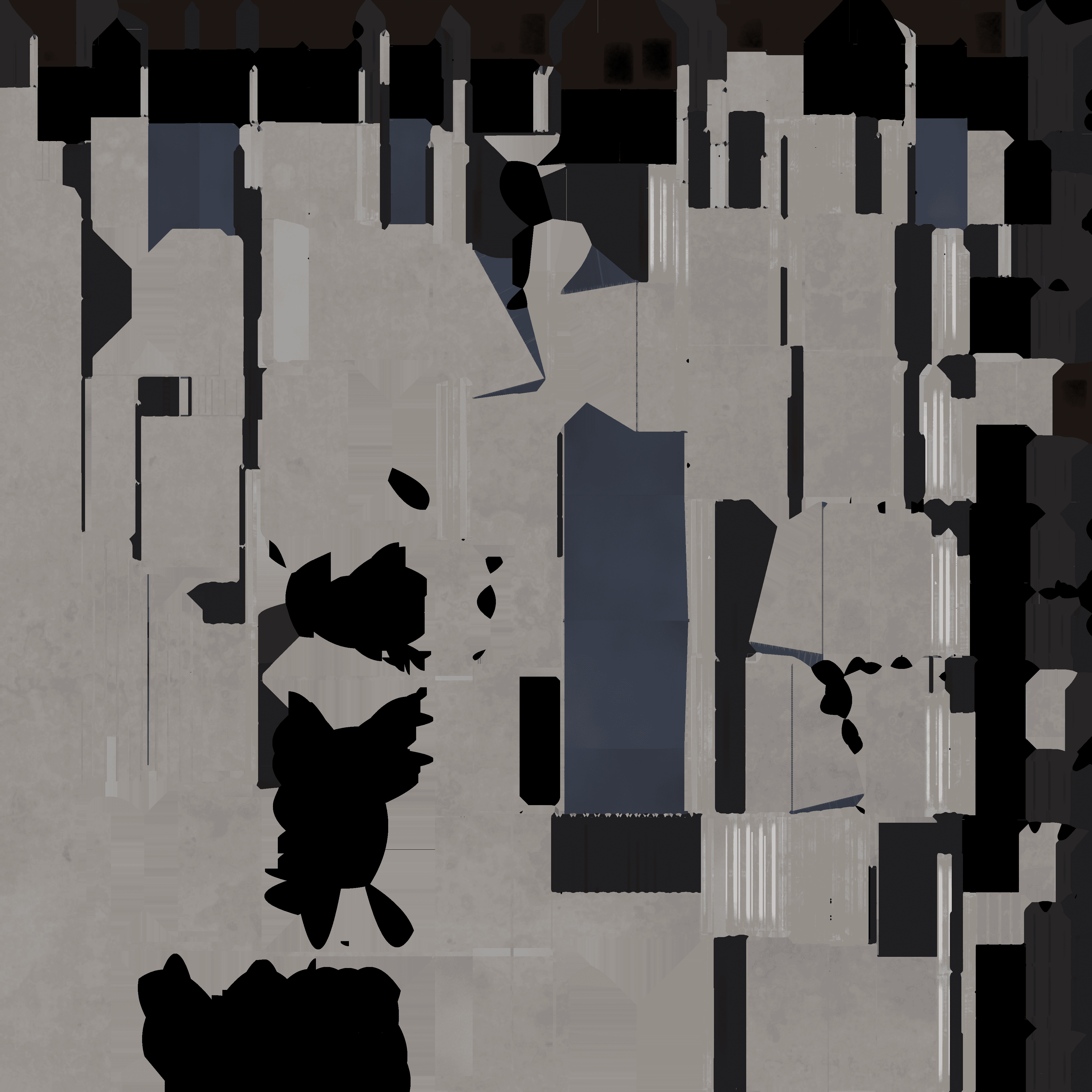

Base Color texture map supplied with the facade study. — Base Color

Surface color.

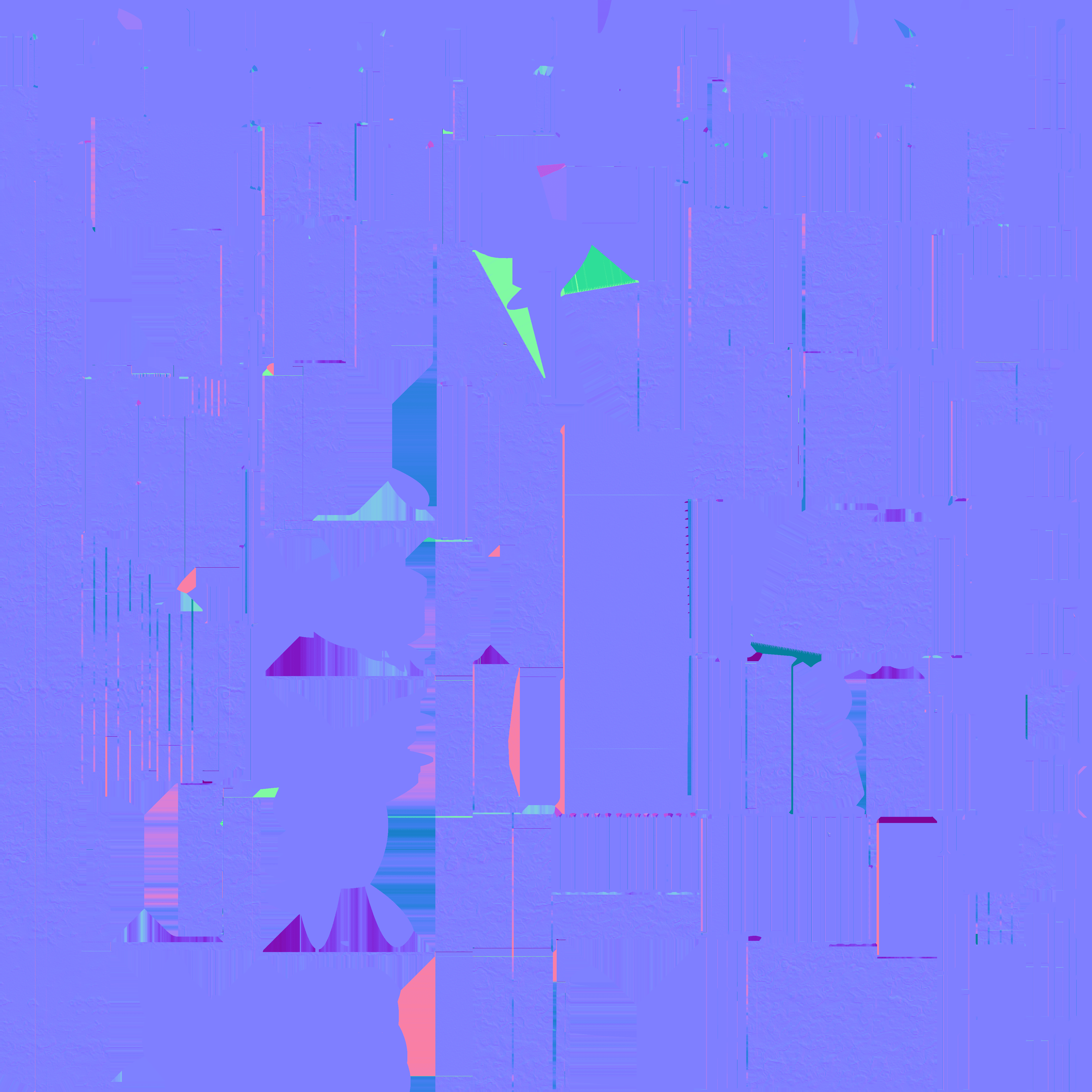

Normal texture map supplied with the facade study. — Normal

Surface normal detail.

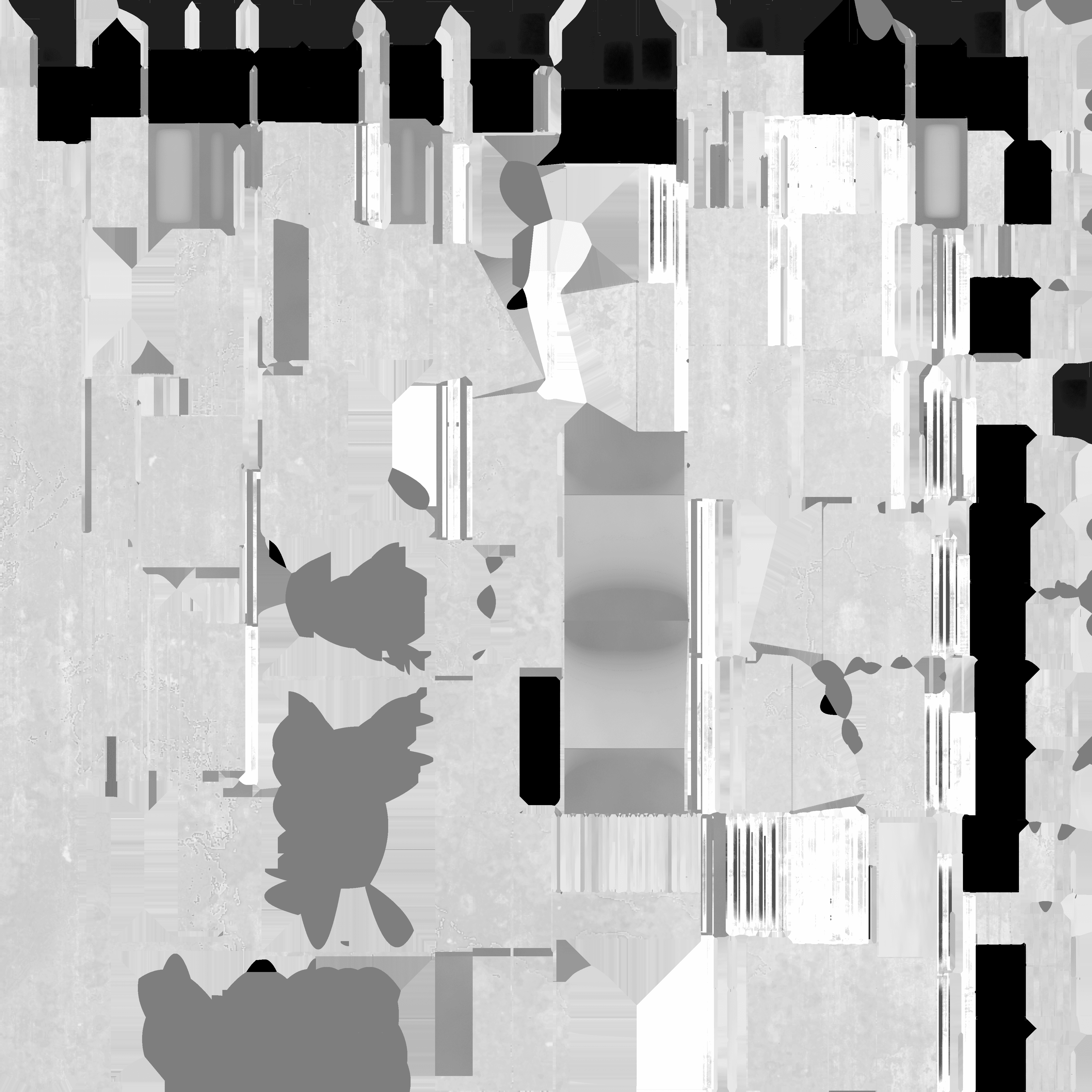

Roughness texture map supplied with the facade study. — Roughness

Surface roughness response.

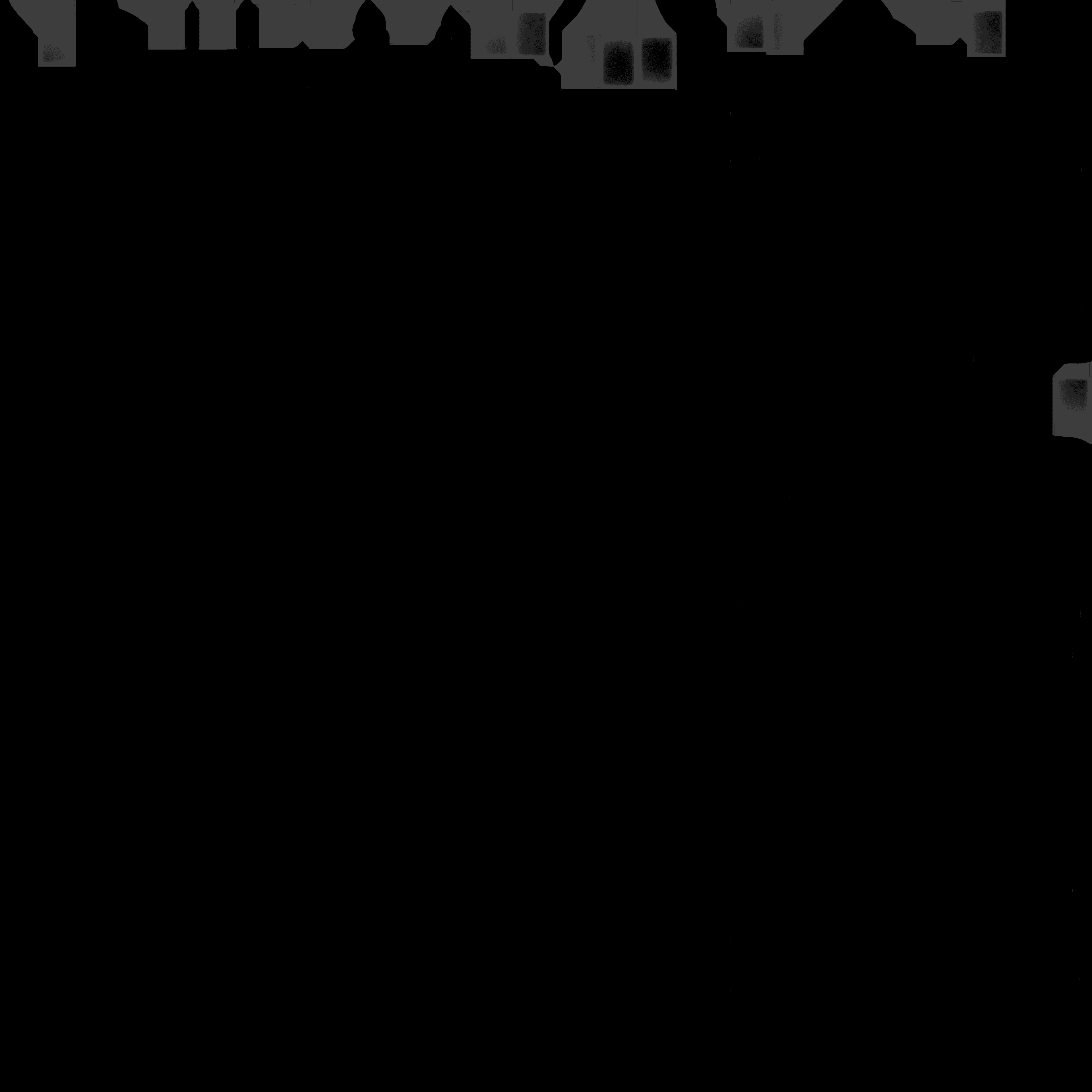

Metallic texture map supplied with the facade study. — Metallic

Metallic response.

05 / Blender

Reference vs result

↔

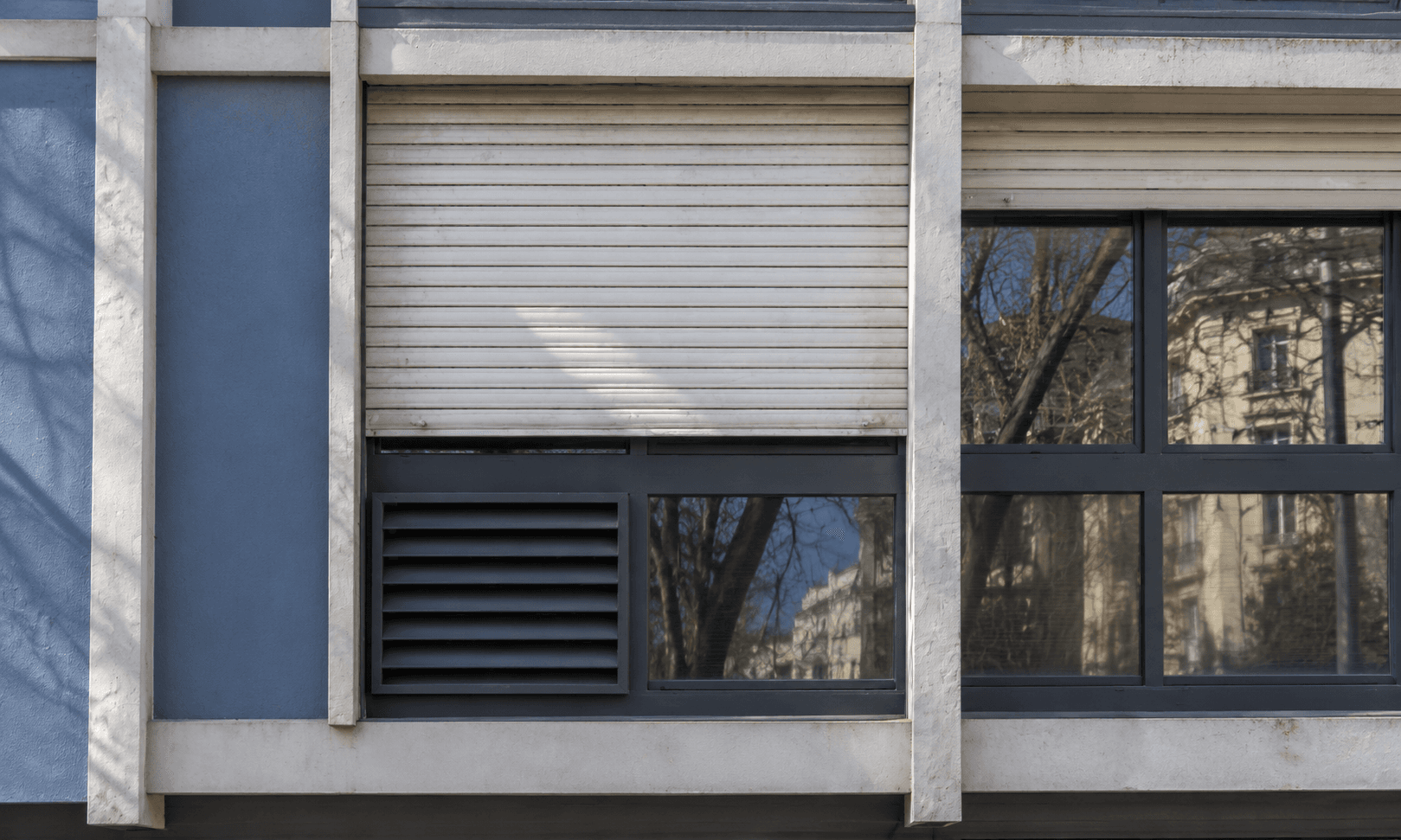

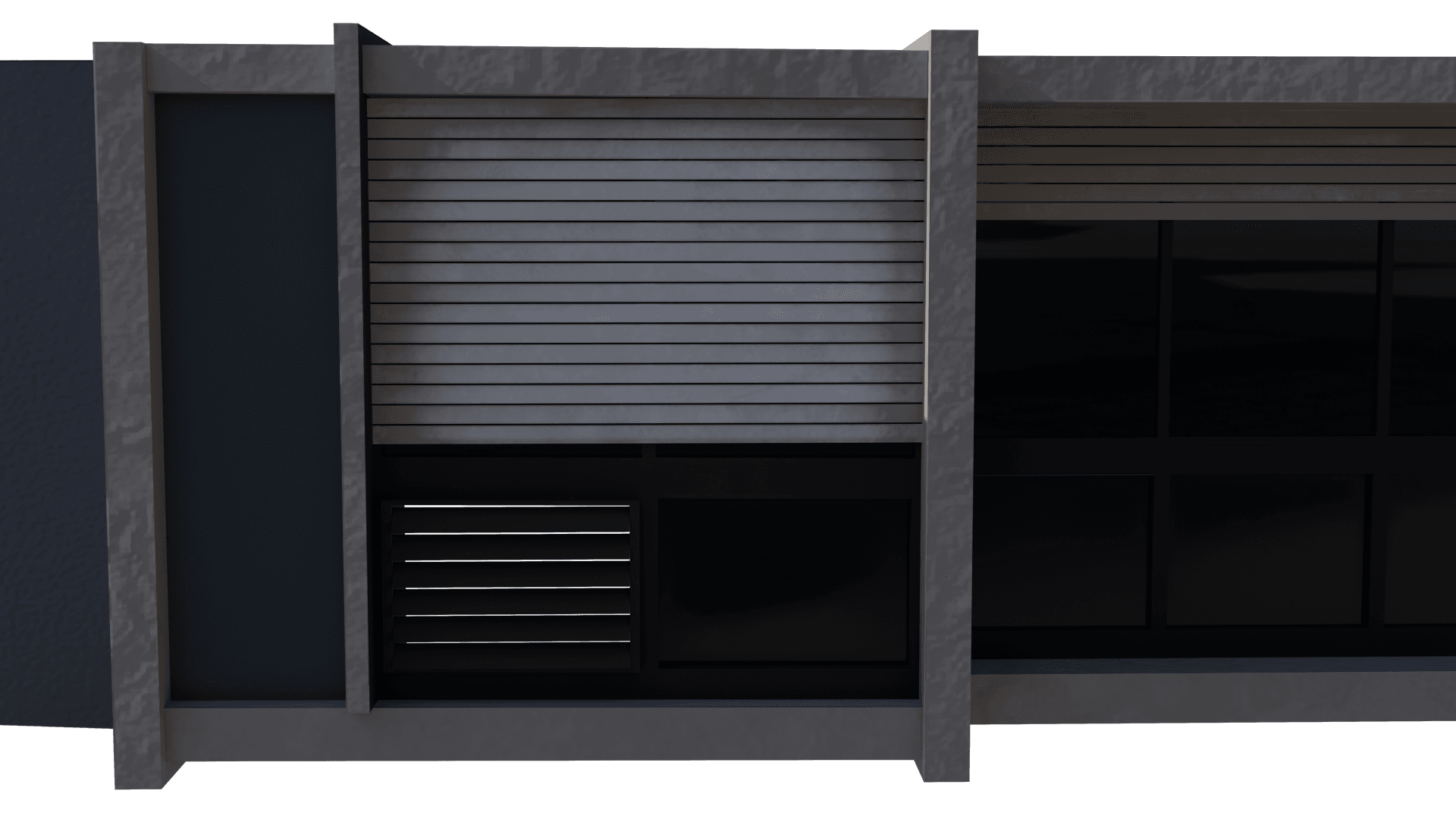

ReferenceResult

Project result

10 / 10Academic Grade

07 / Blender

Final renders

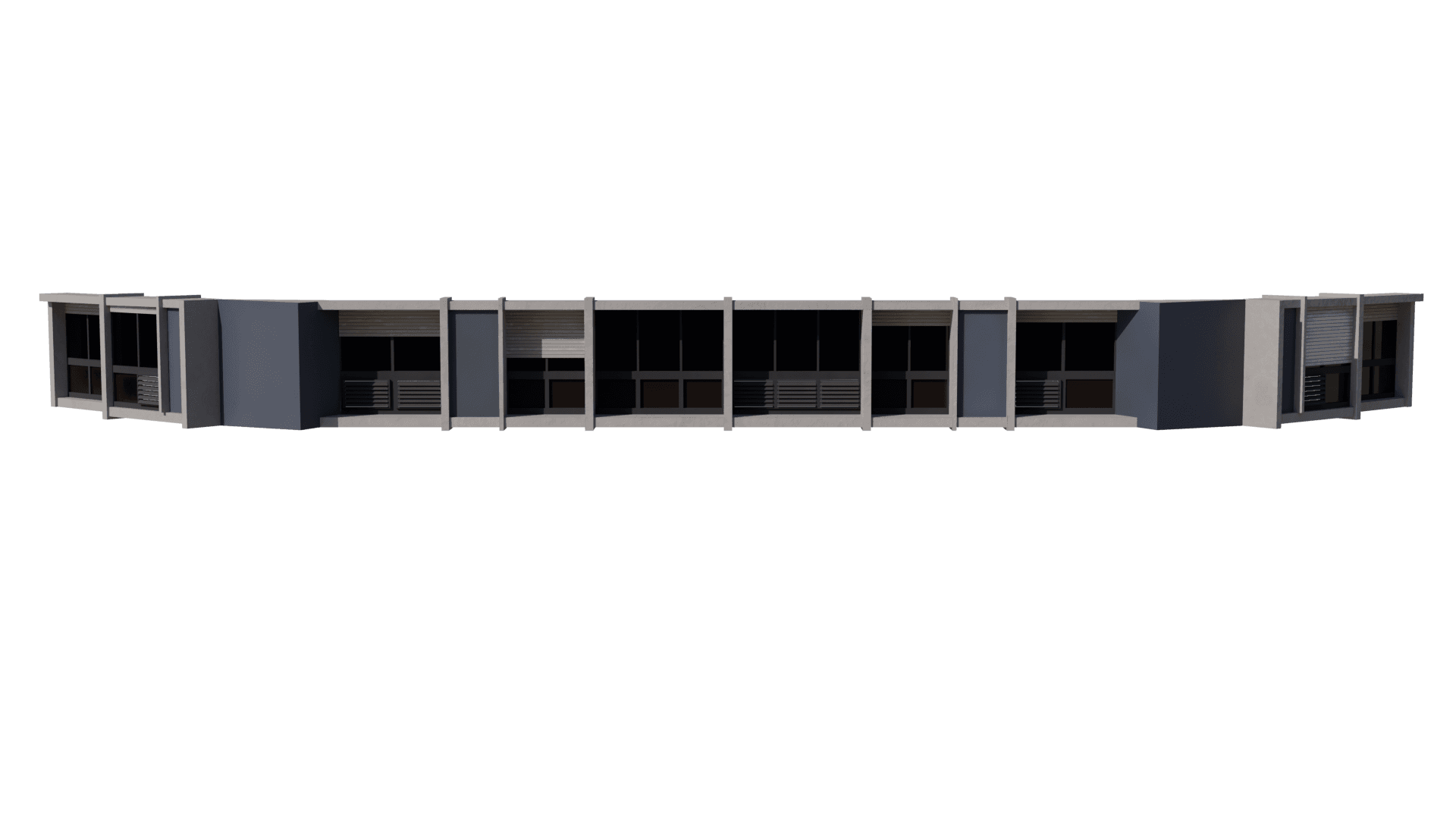

Frontal render of the modeled facade section. — Front render
